Payloads
We are all about payloads, from lidar to thermal imaging, we have you covered.

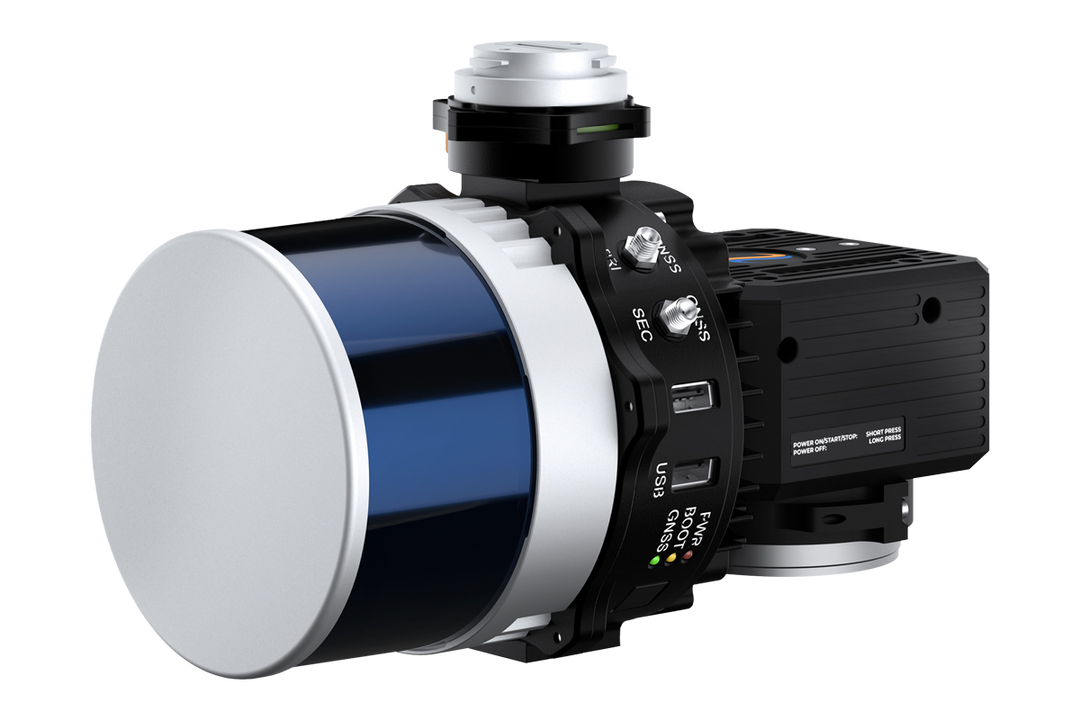

Lidar
Generate 3D representations of the real world. We work closely with YellowScan and Riegl to deliver fully integrated systems that work seamlessly together.

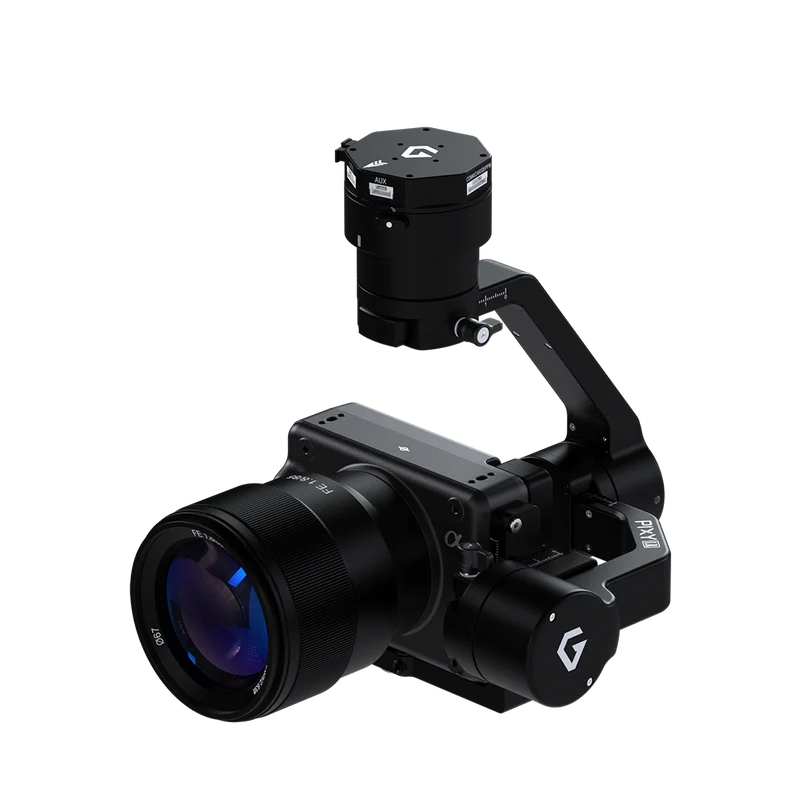

Photogrammetry
Our drones offer perfectly integrated photogrammetry solutions. This means full camera control with real-time georeferencing. GPS coordinates are automatically saved to the images’ EXIF data.
Photogrammetry
Our drones offer perfectly integrated photogrammetry solutions. This means full camera control with real-time georeferencing. GPS coordinates are automatically saved to the images’ EXIF data.

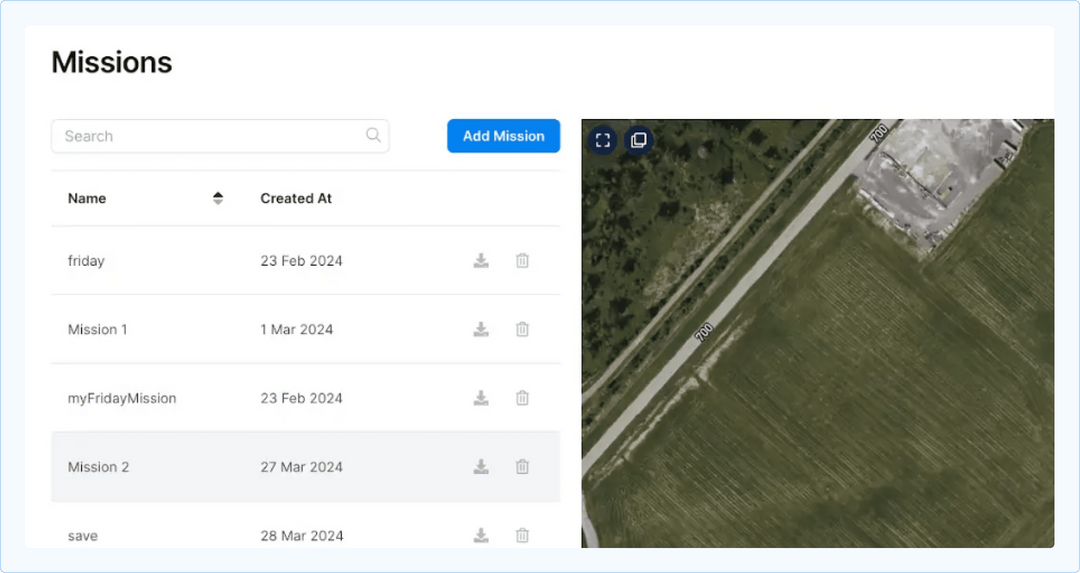

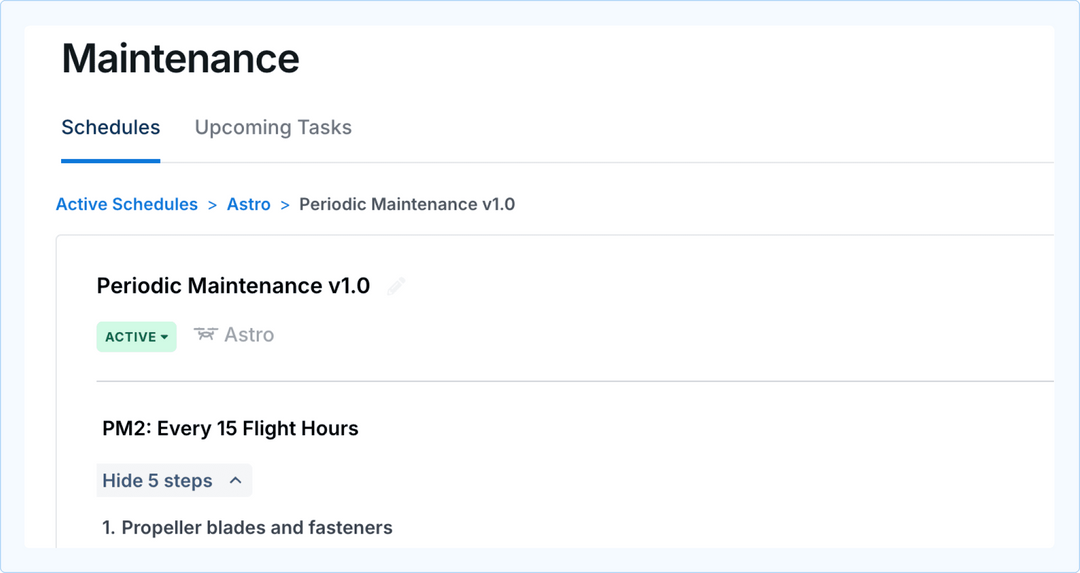

Auterion Suite
With every mission, data is automatically transferred into the cloud-based Auterion Suite, providing real-time information captured by the robot while it’s still operating, without any manual intervention.
Performance Compact design
Aurora's advanced engineering enables extended flights and the carriage of heavy loads, all within a compact size. The 6061 aluminum construction ensures durability. Folds up into a two-foot square.
Main Power Interface
Using XT90 power connector that allow for easy battery connections

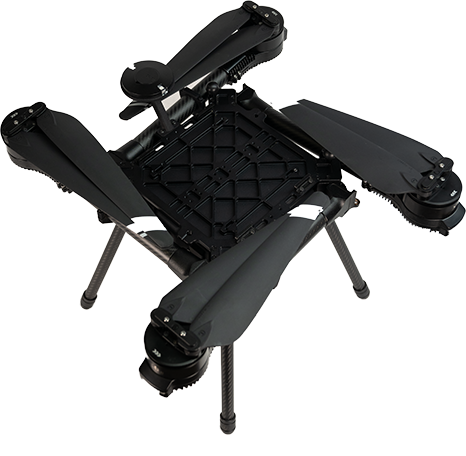

Compact Folding Design
Folding boom design with folding propellers for easy set-up and transportation.
Ark RTK
Achieve precise missions and NTRIP capabilities with the Ark RTK GPSs.
Aurora Specifications
Motors: (4)-150kV 26kg max thrust
Propeller size: 24”
Dry Weight: ~12bs. / ~6 kg
Max payload: ~20 lbs. / ~9kg
MTOW: 44 lbs. / 20kg
Power: 16Ah to 30Ah @ 44v
Flight time: ~20 – 50 minutes
Flight Controller- Skynode
Control range: ~2 miles / ~4 km
Max speed: 50 mph / 100 km/h
Dust & water-resistant
Aurora-SE Specifications
Motors: (4)-150kV 26kg max thrust
Propeller size: 24”
Dry Weight: ~12bs. / ~6 kg
Max payload: ~20 lbs. / ~9kg
MTOW: 44 lbs. / 20kg
Power: 16Ah to 30Ah @ 44v
Flight time: ~20 – 50 minutes
Flight Controller: CubeOrange Plus
Control range: ~2 miles / ~4 km
Max speed: 50 mph / 100 km/h
Dust & water-resistant
Additional Specifications
Diagonal Wheelbase: 890mm
Autopilot: Auterion Skynode
FPV Video: High Definition FPV Video
Ingress Protection: Water & Dust Protected (IP51)
Ground Station Controller: your choice of radio
External Power: 24v@5amps
External Communications: SBus / Serial / Can /Ethernet / USB
External Video: FPV Video
Aurora Includes
Auroura comes standard with sUAS, Herelink Controller, and SKB Carring Case.

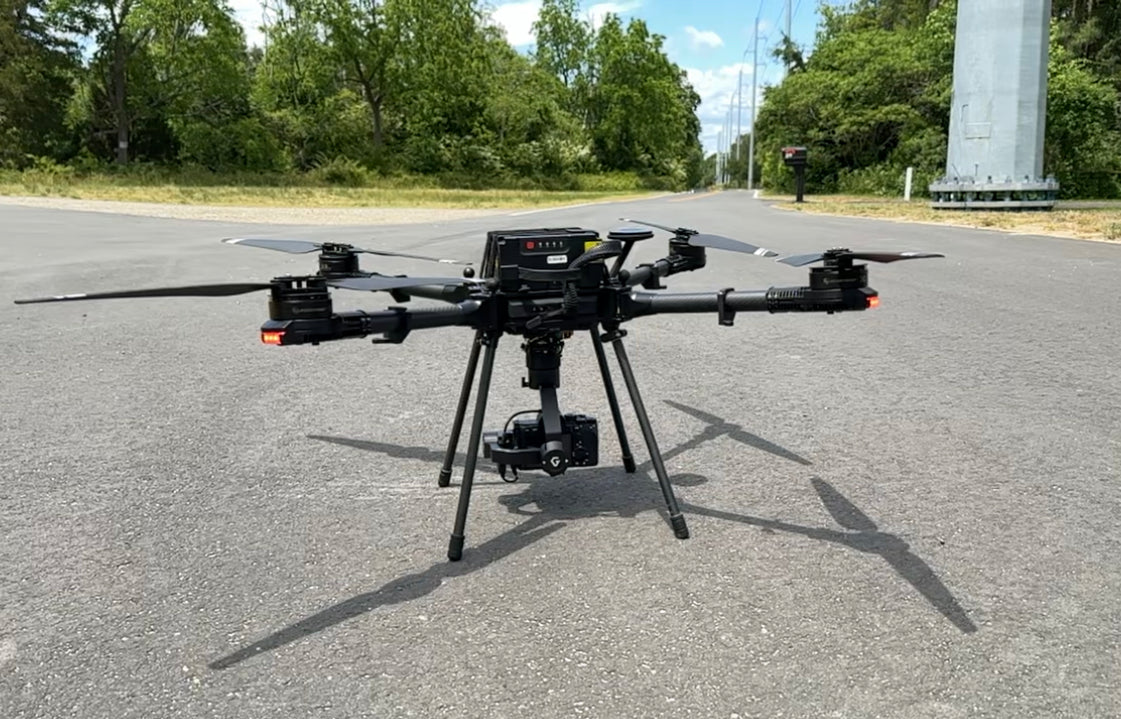

Aurora
Fully built and tested Aurora aircraft.
Remote Control System
Controller with Auterion AMC, charger, and all support equipment installed and tested
Aurora Shipping Case
Full protection for Aurora remote control, landing gear, and support equipment
COMPLIANT
Our product complies with the National Defense Authorization Act (NDAA) and has enabled Remote ID. It is also made, produced, and supported in the United States.
