Industrial sUAS
Industrial sUAS
We designed our SUAS to be light yet strong to allow you to fly a wide range of payloads for maximum of time.
Parallel Power Interface
CNC power transitions can be customized for your preferred battery connectors

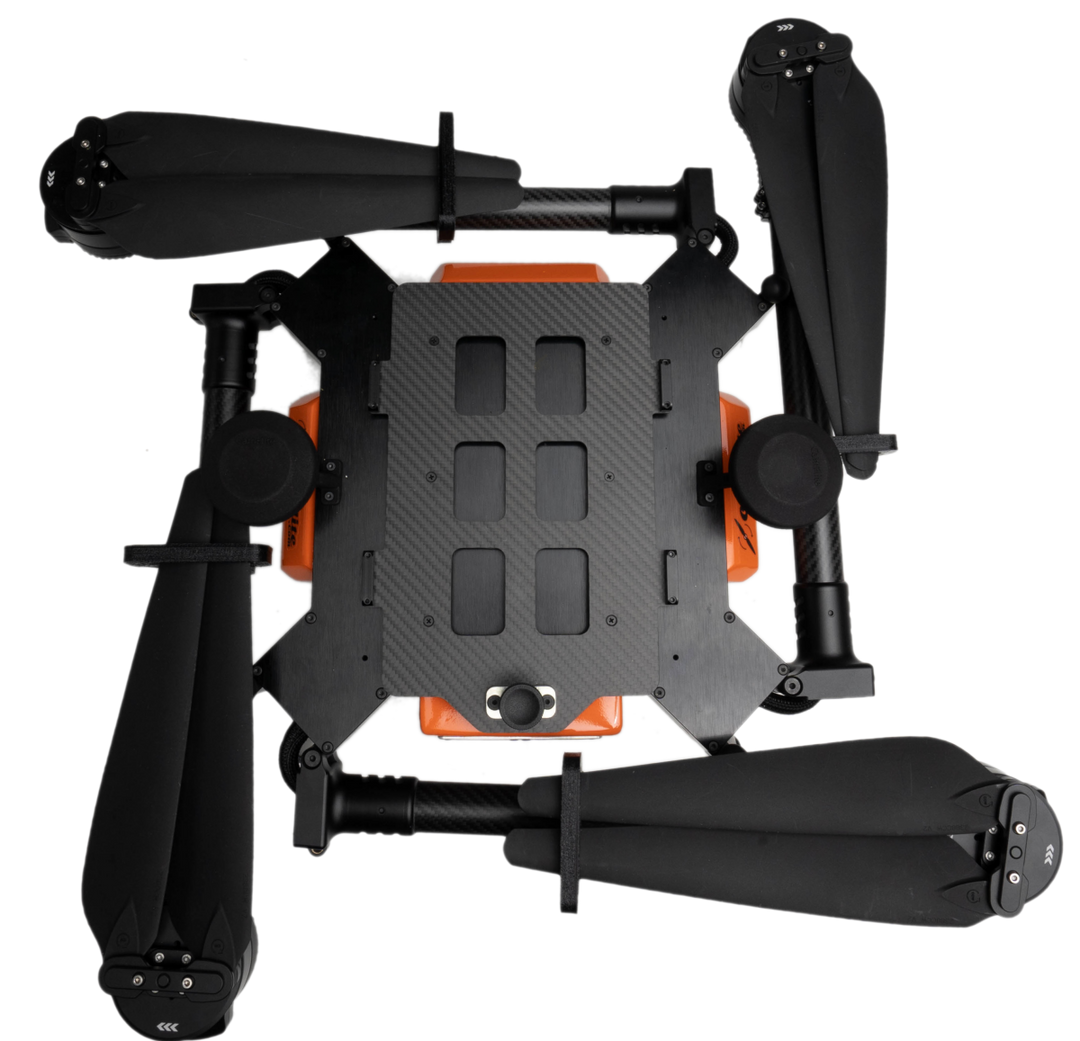

Compact Folding Design
Folding boom design with folding propellers for easy set-up and transportation.
Remote ID
Enabled
Using Skynode we comply with FAA remote ID
X Specifications
Motors: (4)-T-Motor U8II
Propeller size: 29”
Dry Weight: ~14lbs. / ~6 kg
Max payload: ~10 lbs. / ~4.5kg
MTOW: 44 lbs. / 20kg
Power: 16Ah to 44Ah @ 44v1
Flight time: ~10 – 45 minutes
Control range: ~5 miles / ~8 km
Max speed: 65 mph / 100 km/h
Dust & water-resistant
Power plant(s) 1,000 hour TBO

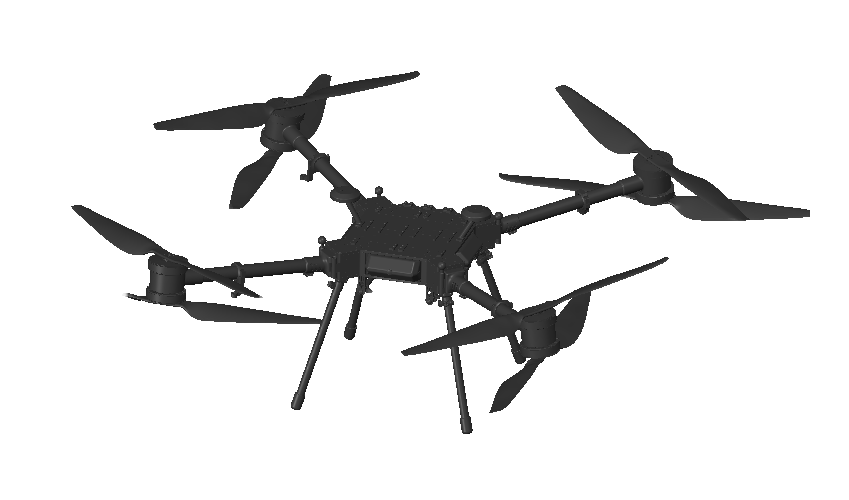

X8 Specifications
Motors: (8)-T-Motor U8II
Propeller size: 29”
Weight: ~16.5 lbs. / ~7.5kg
Max Payload: ~25 lbs. ~7.5 kg
MTOW : 55+ lbs. / 25 kg
Power: 16Ah to 44Ah @ 44v
Flight time: ~10 – 35 minutes
Control range: ~ 5 miles / ~8 km
Max speed: 65 mph / 100 km/h
Dust & water-resistant
Power plant(s) 1,000 hour TBO
Additional Specifications
Diagonal Wheelbase: 1,200mm
Autopilot: Auterion Skynode
FPV Video: High Definition FPV Video
Ingress Protection: Water & Dust Protected (IP51)
Ground Station Controller: your choice of radio
External Power: 5v, 12v, 24v, 50v
External Communications: SBus / Serial / Can /Ethernet / USB
External Video: From your payload
CamFlite Vehicles Include
Ascent X/X8 vehicle, your choice of command and control systems, and a custom shipping case

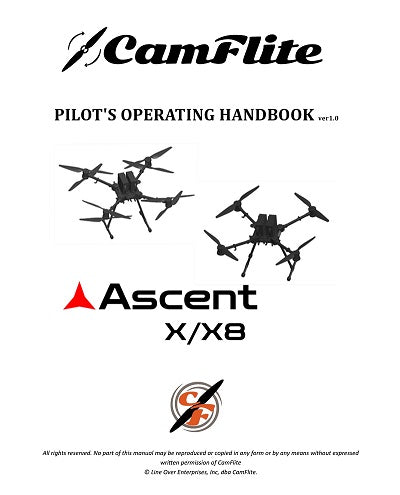

Ascent Manual
Lastest Operation Manual
Remote Control System
Controller with Auterion AMC, charger, and all support equipment installed and tested
Ascent Shipping Container
Full protection for Ascent X / X8, remote control, landing gear, and support equipment
